Qrino　Be

Beryllium　Series
It's your prestige

THE　EXTRAVAGANT　
HIGH-END SPEAKERS

It reproduces impression, does to become enjoyed from the essence of music, in order to enjoy the flow of the time in such a music space; the most important part is the speaker.

BeW-13

Among those most as for the part which is located on the center when the diaphragm is, positioning, we spent the conception period of 5 years and the development period of 2 years.As a result, the Qurino brand was born.It is more important thing than new technology and epoch-making conception to stare the technology which is accumulated in past history, in the process which is considered concerning the material of the diaphragm, to pursue essence.　What material of diaphragm of ideal?　We overtook thoroughly.　Concerning tweeter for high pass playback of music, at the same time Young's modulus of the material of the diaphragm and ratio of the material density, in other words numerical value of specific modulus the big material, furthermore, those whose high pass resonance frequency is high are the material of ideal. The result and the atomic number 4 which it groped, ”Beryllium” it selected. Because as for the relative importance, “Beryllium” as for 1.848g/cm2 and Young's modulus it is very high numerical value, as for thickness it is possible to prolong very much thin. In the association, as for the aluminum maximum 0.075mm, as for titanium as for “Beryllium” it is possible to 0.02mm maximum 0.05mm, by comparison with those to make thickness thin.In other words, although being possible, in the metal material, to be hardest, to process thin as for the mass there is an advantage where it can process more lightly than the soft metal material.

As for cone type woofer, high pass threshold frequency is decided weight of the diaphragm and the mass of voice coil, by stiffness of the diaphragm point. ”Qurino” not to be to process simply as woofer,” because it develops, full-range speaker” as high pass threshold frequency is designed in order to become very high.
In order adjusts to the acoustic playback ability of Tweeter, to play music, it is the identical material, “Beryllium” is necessary.
We, with 25mm tweeter, 13cm full-range unit and 20cm woofer (all the resister reproducible) developed unit.　This is the worldwide beginning is “Beryllium” FULL sound system.
Those which are different from the music which past you hear completely.　“Qrino”, offers the music playback space of new dimension to you.

Full　Fine　Beryllium　Sound　SystemS

ユニットデーター

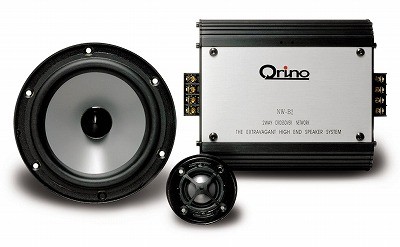

BE-１3S
Fine　Beryllium　System
25mm Tweeter/13cm Woofer
2way crossover

BE-１6S　

Fine　Beryllium　System
25mm Tweeter/16cm Woofer
2way crossover

MUSIC CROSSOVER

MNW-13
BeT-25/BeW-13 2way crossover

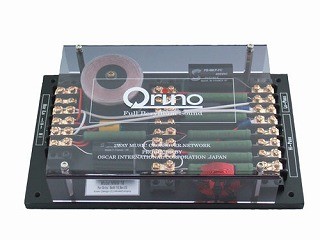

MNW-16
BeT-25＋BeW-16c2way crossover

Full　Fine　Beryllium　Sound　System

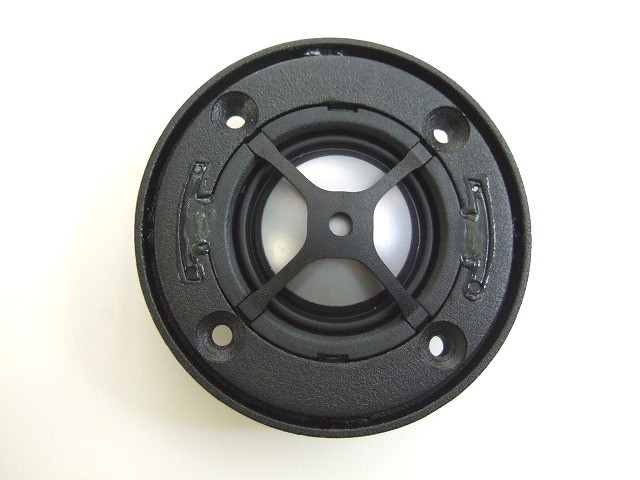

BeＴ-25
Fine　Beryllium
25mmTweeter

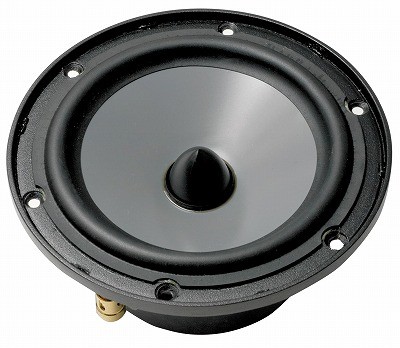

Bew-13
Fine　Beryllium
13cm Woofer

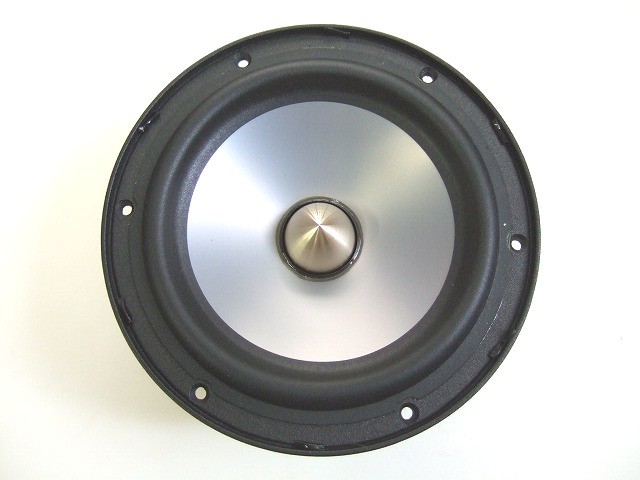

Bew-16　

Fine　Beryllium
16cm Woofer

Bew-20
Fine　Beryllium
20cm Woofer

(Note in regard to use)
“The Beryllium” speaker, the very much, it is hard material, but when it hits the diaphragm, pushes in, crack occurs and/or becomes cause of damage.
Please do not touch to the diaphragm.
